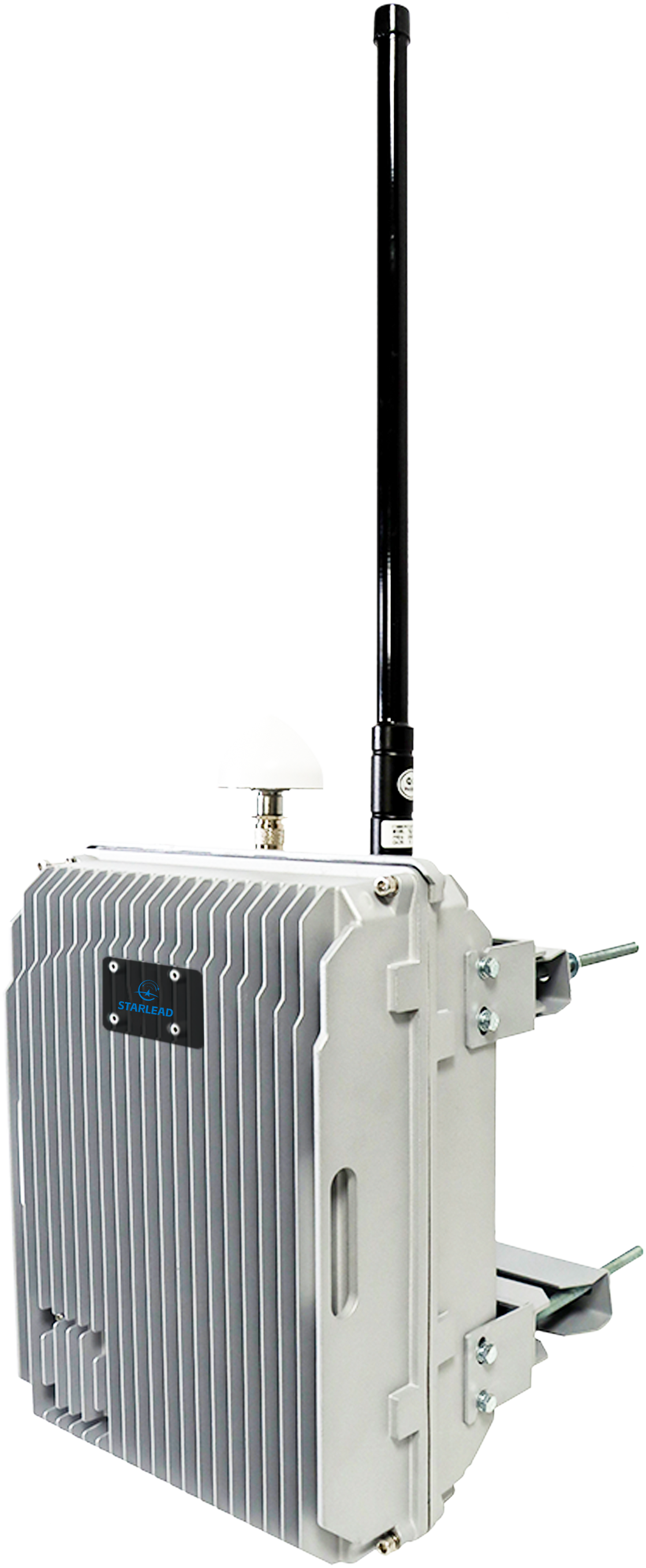

Working mode: Adopt the working principle of navigation decoy interference
Frequency range: Support GPS, Galileo, Glonass, BDS
Defense distance: Adjustable within 0.1-1KM (customizable for long distance)
Decoy angle: Horizontal 360°, pitch 90°
Number of targets: Simultaneously drive away no less than 20 drones of different brands
Response time: <5s
Targeted decoy: Combined with radar detection equipment, it can realize designated area decoy function

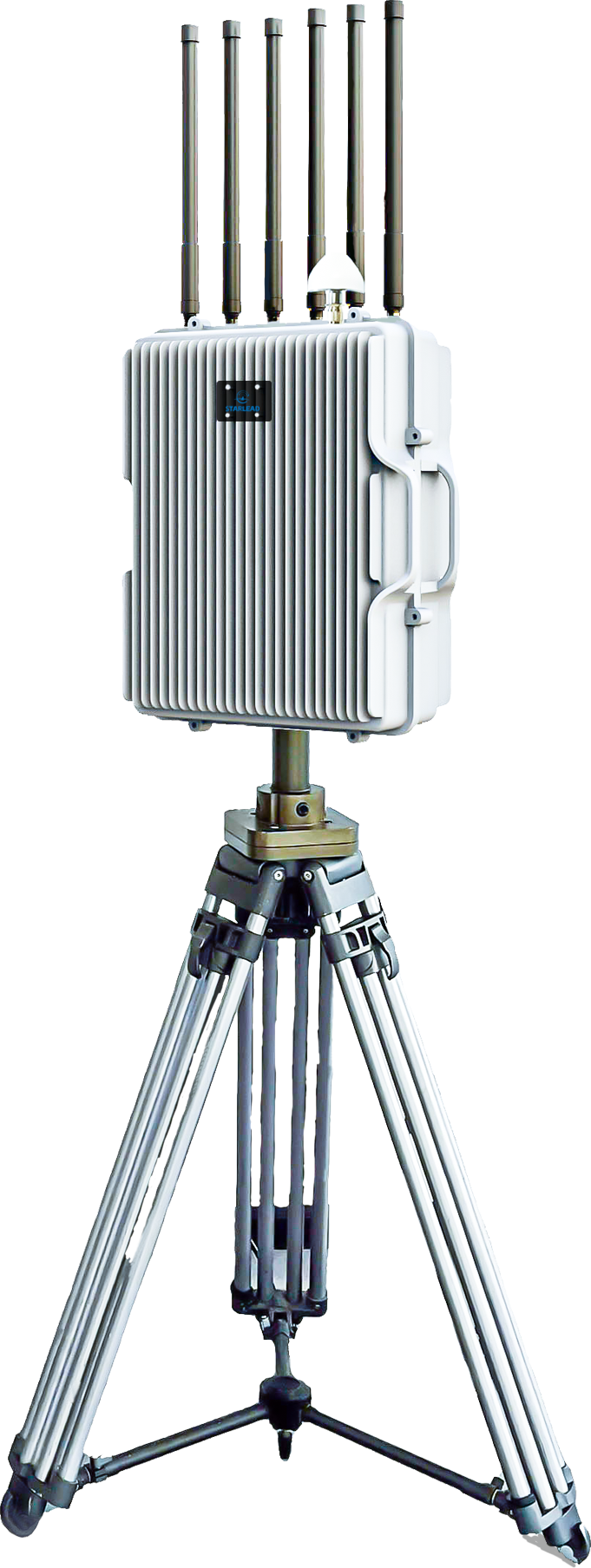

FPV integrated reconnaissance and attack equipment adopts low-noise high-dynamic front-end signal modulation solution, which has the function of high-reliability detection, recognition, and alarm countermeasures specifically for analog image transmission signals.

The equipment has a wide working frequency range and can achieve continuous coverage of 600MHz-6.2G. In addition to covering common frequency bands, it also supports FPV image transmission in unconventional frequency bands, including 720MHz, 2.6GHz, 3.3GHz, 4.4GHz, 4.9GHz, 6.2GHz. Adopt unconventional spectrum monitoring, which uses baseband signal analysis method to achieve zero false alarms.

Reconnaissance distance: ≥1.0km
Jamming frequency band: 400M/800M/900M/1.2G/1.4G/1.5G/2.4G/5.2G/5.8G
Jamming function: Drone navigation/remote control/image transmission communication link
Equipment weight: ≤3KM

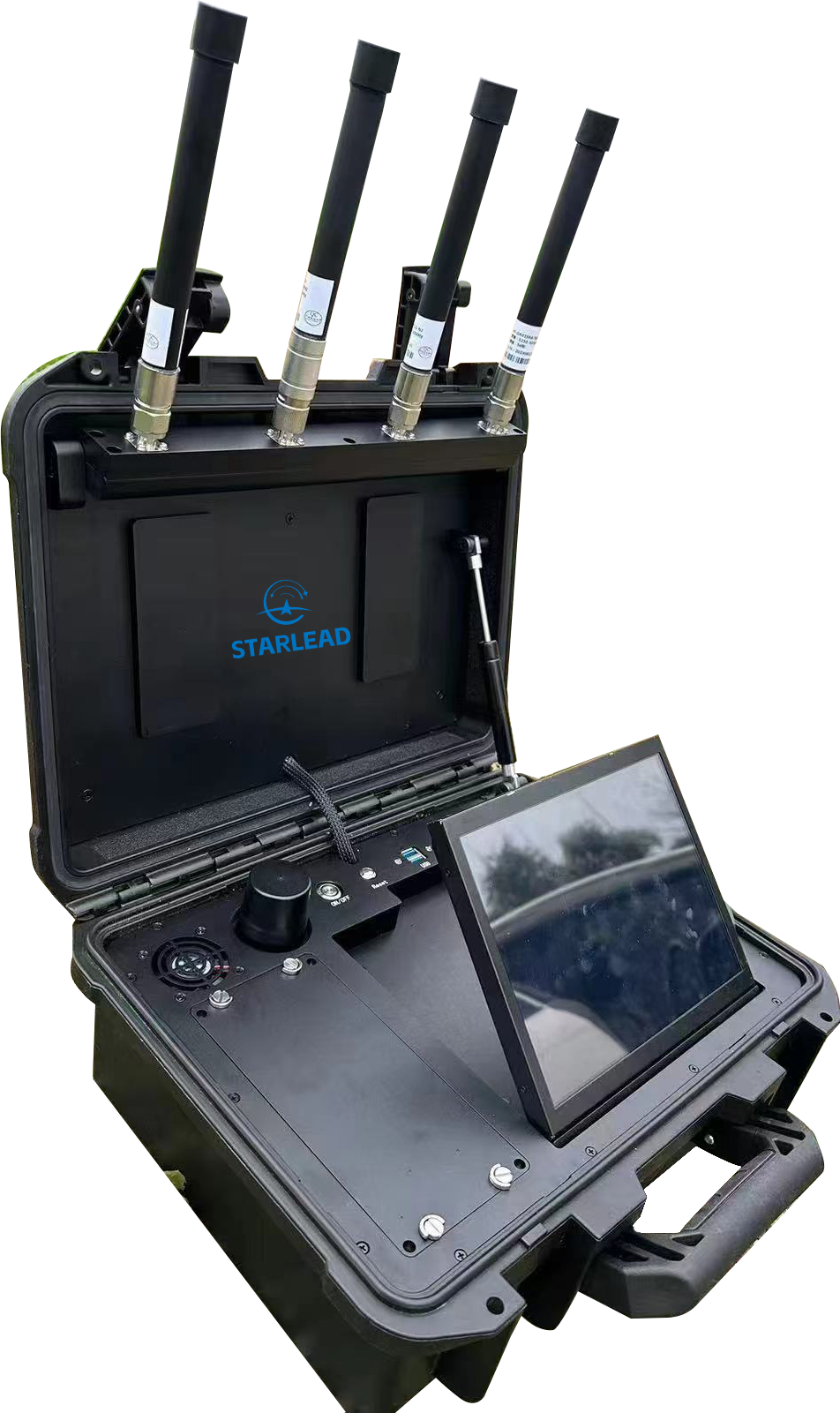

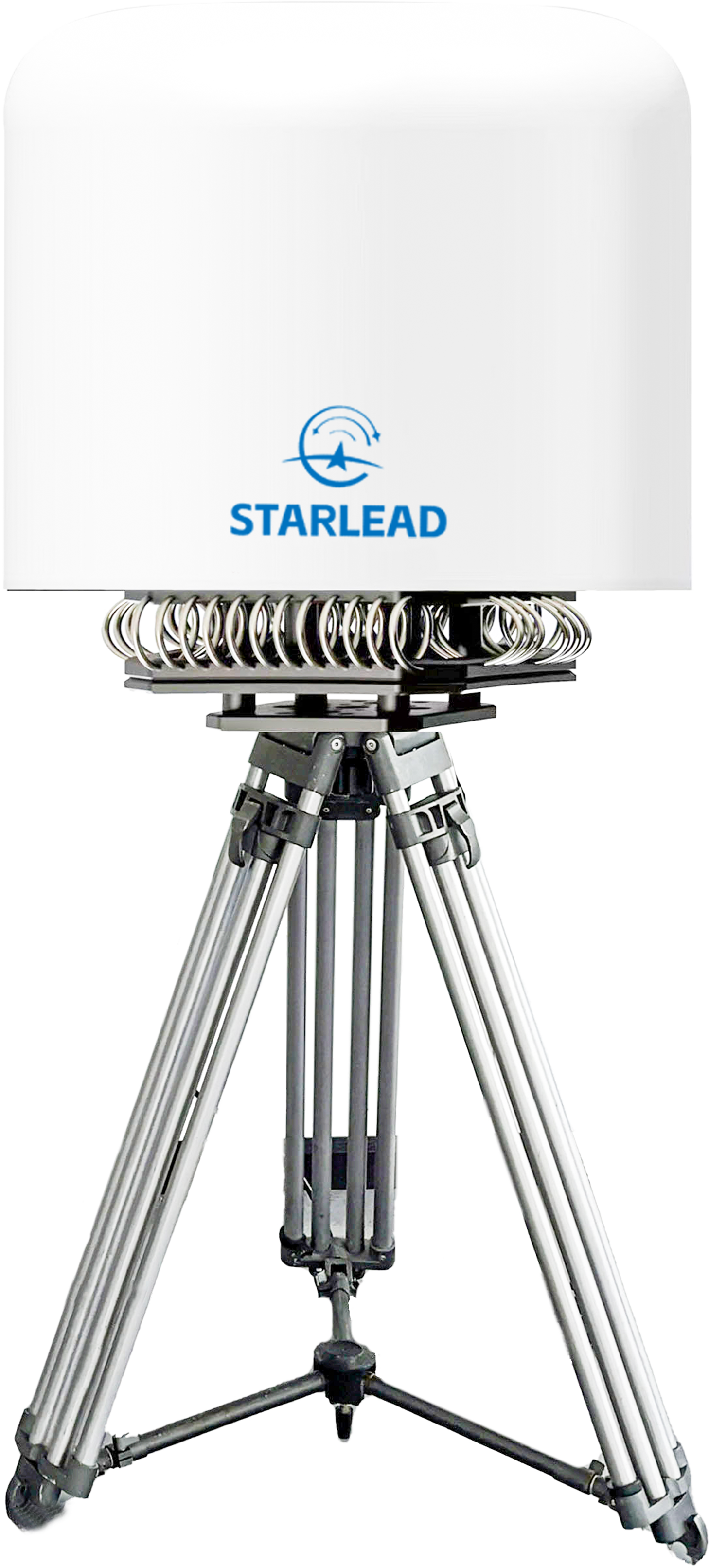

This equipment integrates detection, decoy, and countermeasures units, and achieves detection, identification, localization, and tracking of intruding drones, as well as pilot positioning based on spectrum awareness, protocol analysis, and other technologies. Based on radio suppression and navigation decoy technology, it achieves the driving away or forced landing of intruding drones. The equipment adopts integrated industrial design, with a simple and concealed appearance and strong environmental adaptability. It can be flexibly deployed, and can be used for both vehicle-mounted or fixed installation.

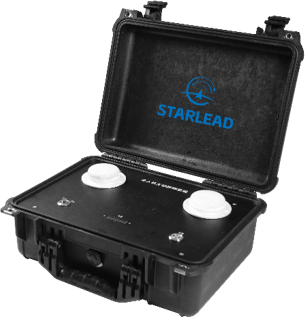

This equipment integrates detection, decoy, and countermeasures units, and achieves detection, identification, localization, and tracking of intruding drones, as well as pilot positioning based on spectrum awareness, protocol analysis, and other technologies. Based on radio suppression and navigation decoy technology, it achieves the driving away or forced landing of intruding drones. The equipment adopts integrated industrial design, making it easy for single soldier deployment.

Working mode: Adopt the working principle of navigation decoy interference
Frequency range: Support GPS, Galileo, Glonass, BDS
Defense distance: Adjustable within 0.1-1KM (customizable for long distance)
Standby time: ≥24 hours
Decoy angle: Horizontal 360°, pitch 90°
Defense quantity: Simultaneously drive away no less than 20 drones of different brands
Response time: <5s

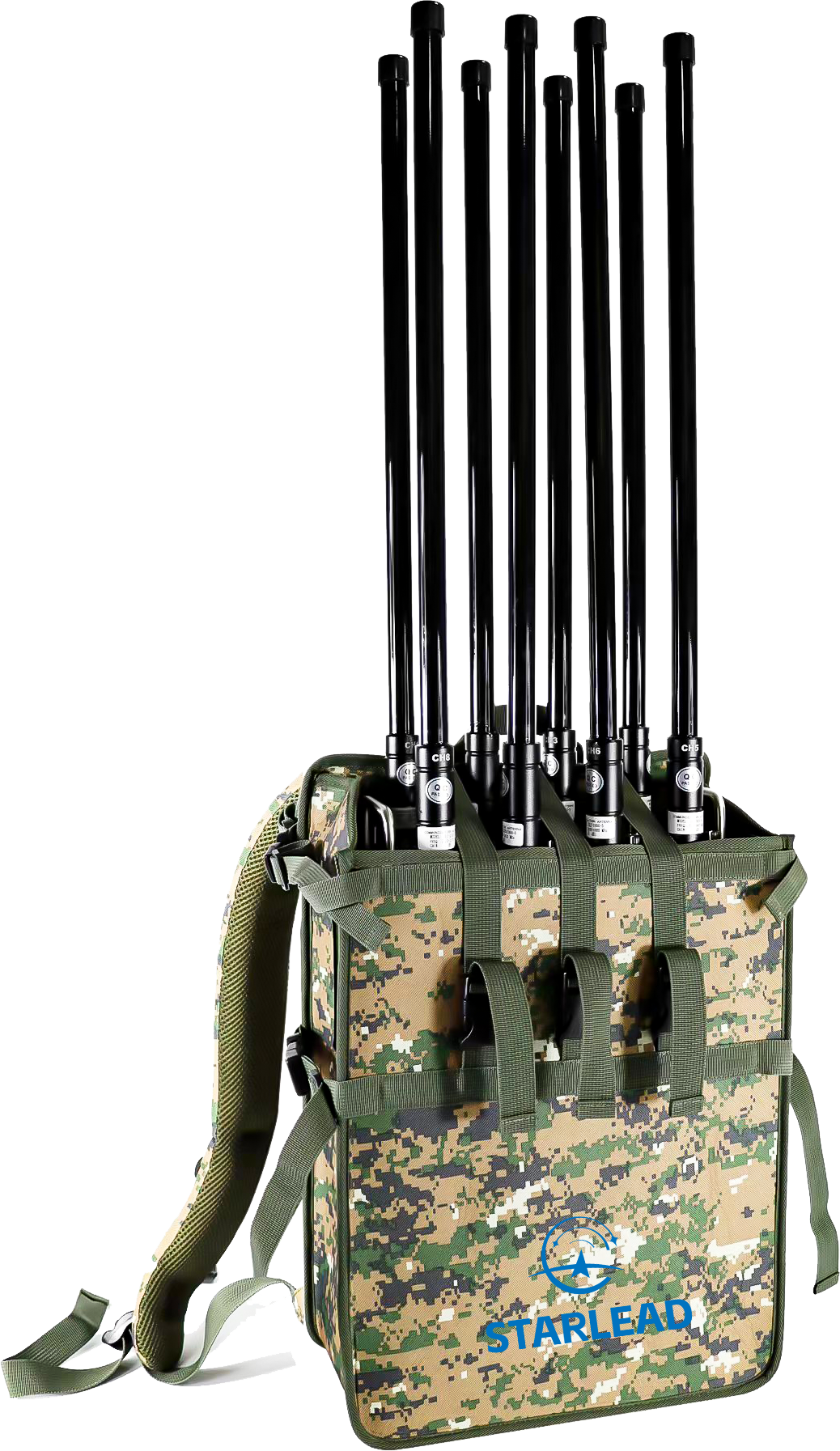

Portable FPV reconnaissance and attack integrated equipment is specifically designed for highly reliable detection, identification, warning, and countermeasures against standard and non-standard frequency band image transmission signals; it adopts a low-noise high-dynamic front-end signal conditioning solution.
The equipment has a wide working frequency range. In addition to covering the common 1.2GHz, 2.4GHz, and 8GHz frequency bands, it also supports FPV image transmission in the unconventional frequency bands, including 720MHz, 2.6GHz, 3.3GHz, 4.4GHz, 4.9GHz, 6.2GHz. The module can achieve continuous coverage in the working frequency range. Adopt unconventional spectrum monitoring principle, which uses baseband signal analysis method to achieve zero false alarms.

Composed of array antennas, radio AI processing units, decoy units, and control terminals, it is capable of fully automatic real-time passive, zero blind spot detection of interference, advanced warning, precise differentiation of friend and foe; with the ability to detect unknown drones, it implements precise attack using narrowband low power, with flexible deployment methods, and can be used in vehicle-mounted or fixed installations.

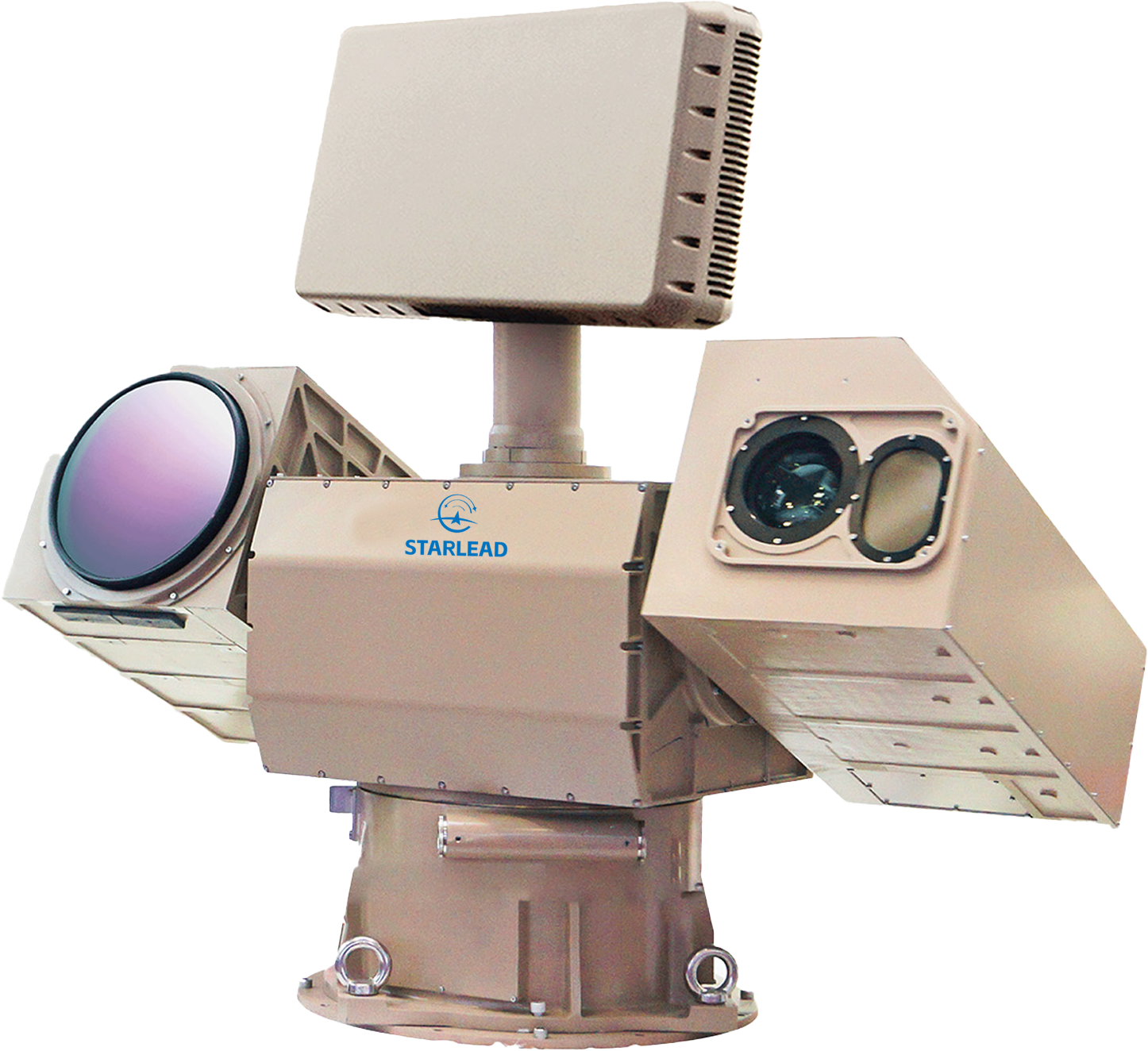

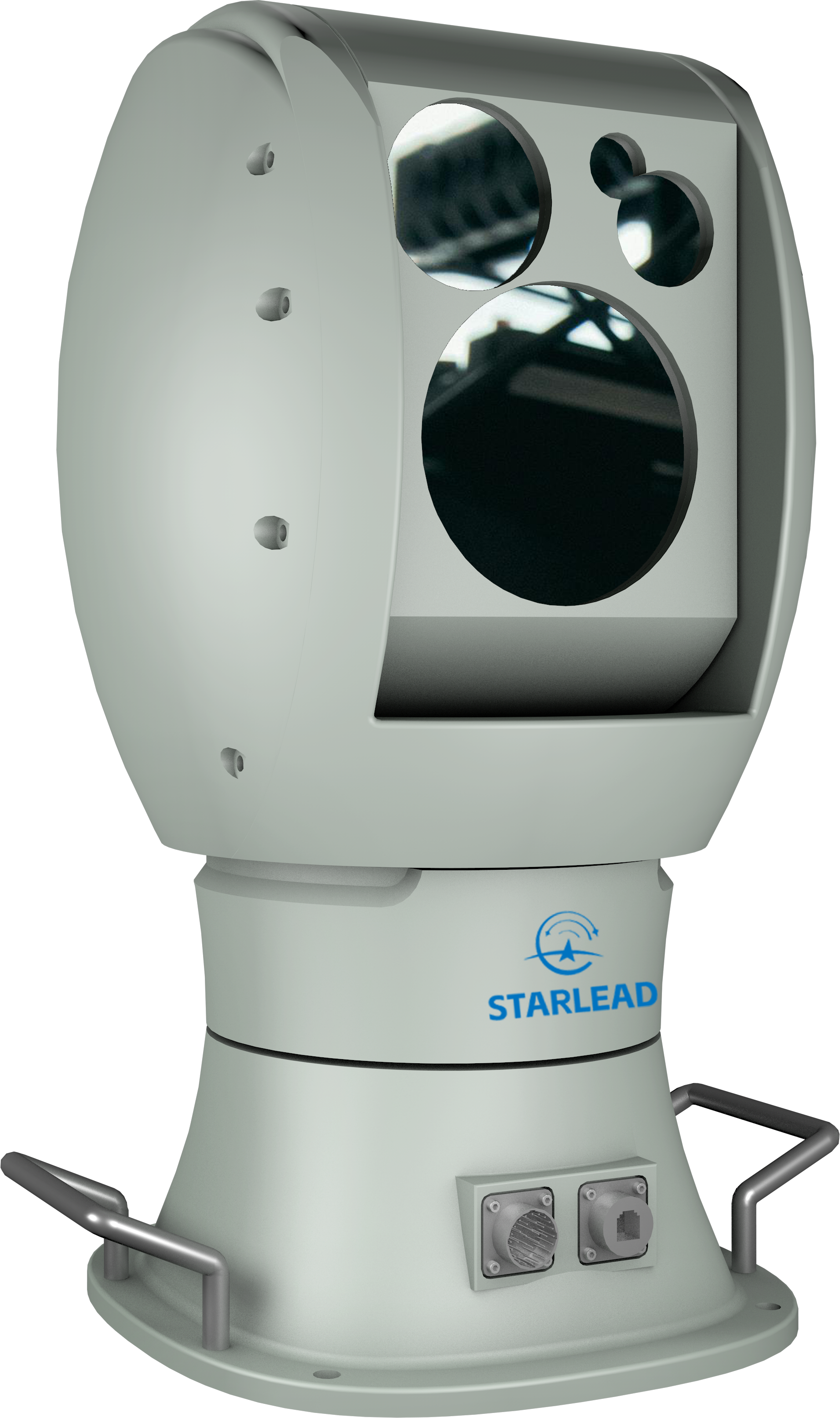

Integrated visible light high-definition camera, passive infrared thermal imaging detector, and high-precision 360° rotating platform, dual-spectrum multi-channel day and night complementary imaging, to achieve low-light, severe haze weather, and 24-hour all-weather visibility in all day. Suitable for tracking and locking on to low, small, and slow objects like all-weather drones.
Main performance indicators
Tracking range: Azimuth 0°~360°, pitch -40°~90°
Tracking distance: 7km during the day, 5km at night
Target identification: Able to identify and track targets such as drones, birds, and airborne objects
Search range: Autonomously search and identify low, small, and slow targets within 3km and below 400m in altitude
Search speed: 120°/s
Measurement precision: ≤0.01°
Laser ranging: ≥5km, accuracy≤±3m
Weight: ≤80kg

Integrated visible light high-definition camera, passive infrared thermal imaging detector, and high-precision 360° rotating platform, dual-spectrum multi-channel day and night complementary imaging, to achieve low-light, severe haze weather, and 24-hour all-weather visibility in all day. Suitable for tracking and locking on to low, small, and slow objects like all-weather drones.
The built-in AI recognition unit can autonomously search, identify, and track targets. It can also receive target location information from radar equipment to achieve automatic locking and continuous tracking.

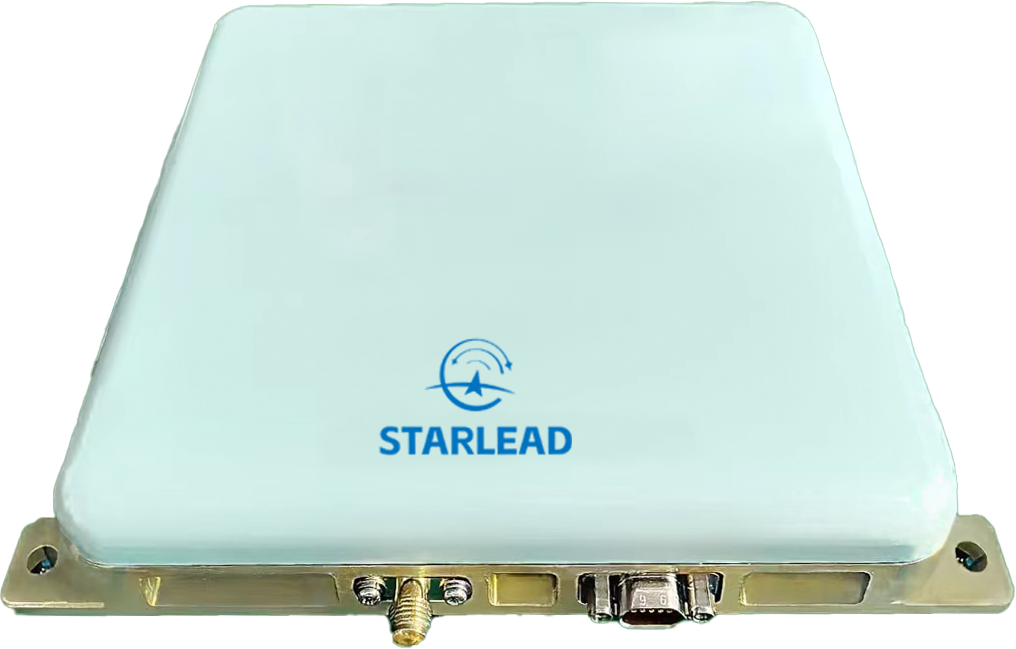

The drone anti-jamming unit supports the receiving and processing of navigation signals from multiple systems and frequency points such as BDS, GPS, GLONASS, Galileo, QZSS, etc. It is equipped with independent intellectual property multi-frequency RTK algorithms and anti-decoy anti-jamming units, providing centimeter-level high-precision positioning services, while also possessing highly reliable and secure navigation positioning information features. This product can provide reliable output in complex electromagnetic environments, specifically designed to provide navigation safety solutions for high-precision positioning and orientation scenarios, effectively ensuring the GNSS security and reliability of intelligent driving, drones, special vehicles, and other carriers.

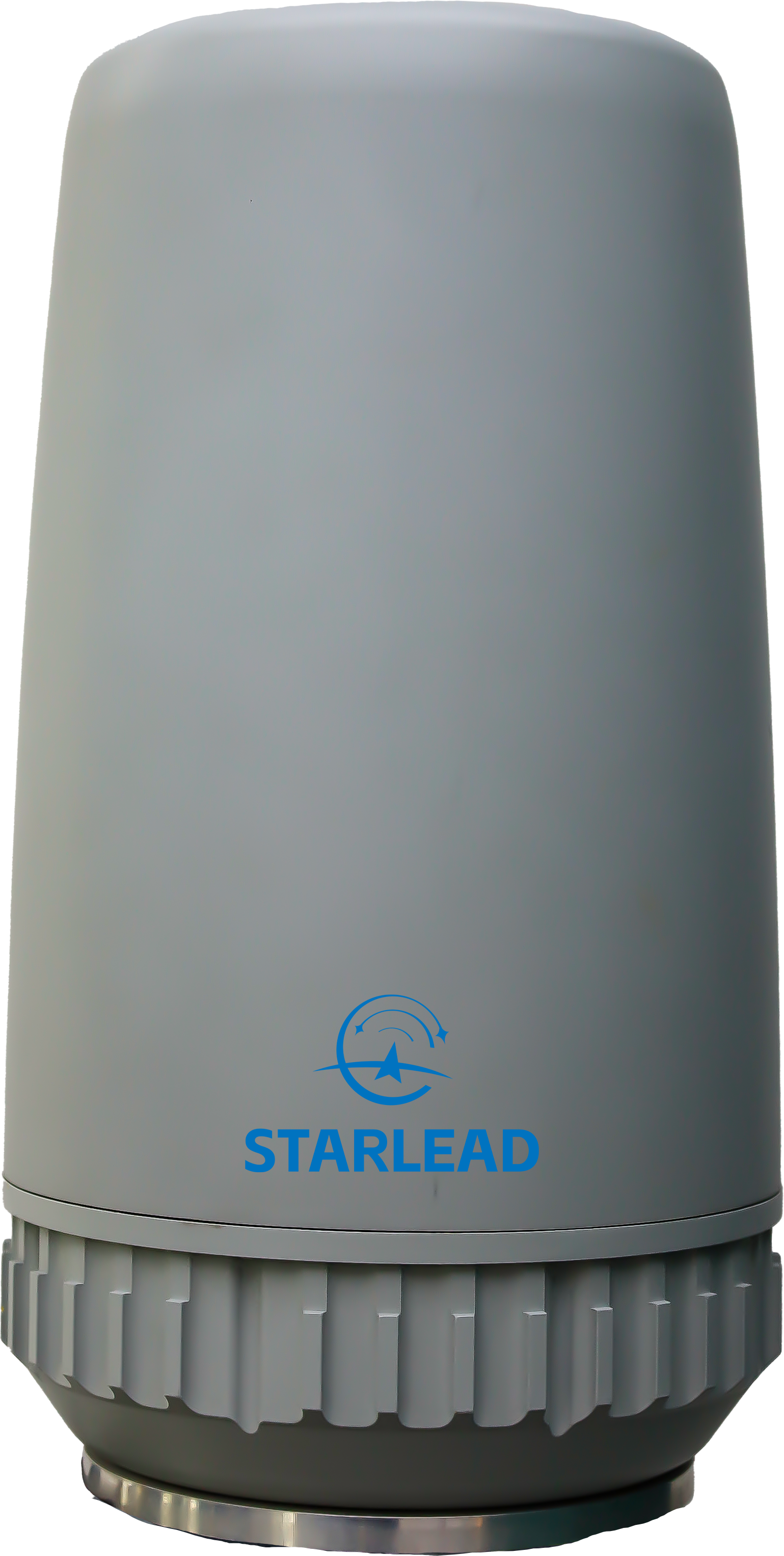

It can achieve fully automatic real-time passive detection early warning, and can accurately distinguish between friend and foe; it has the ability to detect unknown drones (with a focus on detecting and identifying drones from brands such as DJI, as well as FPV and DIY drones).
Mobile and quick deployment; plug and play. There is no need to consider network construction issues in urban environments. Proactively report target situation information to the platform software
